PRODUKTBESCHREIBUNG

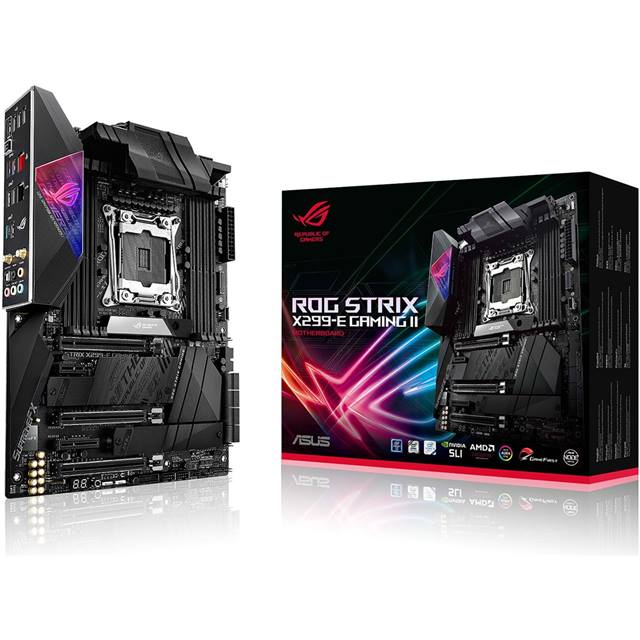

SOLID HARDWARE SPECSWith comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus faster storage and memory, ROG Strix X299-E Gaming II provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
GAMING ENHANCEMENT
ROG Strix X299-E Gaming II is engineered with the latest connectivity for the best gaming experiences. Transfer files faster and banish lag as you secure more victories.
DESIGN & CUSTOMIZATION
A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix X299-E Gaming II wonderfully easy.
Intel® X299 chipset.
The Intel X299 chipset supports LGA 2066-socket Intel® Core™ X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.2 Gen 1 ports, 8 SATA 6 Gbps ports and up to 32 Gbps M.2 support for faster data retrieval.
Intel Core X Series processors for LGA 2066 (R4) socket
Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCIe 3.0/2.0 lanes.
| Modelle: | Intel Core X-series |
| Sockel: | LGA 2066 |
| Multi-Prozessor Fähigkeit: | 1-Way |
Chipsatz
| Bezeichnung: | Intel X299 |
Abmessungen
| Formfaktor: | ATX |
| Abmessungen: | 12 × 9,6 Zoll |
| Anderes: | 30.5cm x 24.4cm |
Arbeitsspeicher
| Anzahl Slots: | 8 Slots |
| RAM-Menge: | 256 GB max. |
| Typ: | DDR4-RAM |
| Taktfrequenz / Geschwindigkeit: | 2133 / 17000, 2400 / 19200, 2666 / 21300, 3600 / 28800, 4000 / 32000, 4133 / 33000, 4200 / 33600, 4266 / 34133 MHz / GByte/s |
| Multi-Channel: | Quad-Channel |
| Eigenschaft: | Unbuffered |
| Bauform: | 288-Pin DIMM |
Anschlüsse

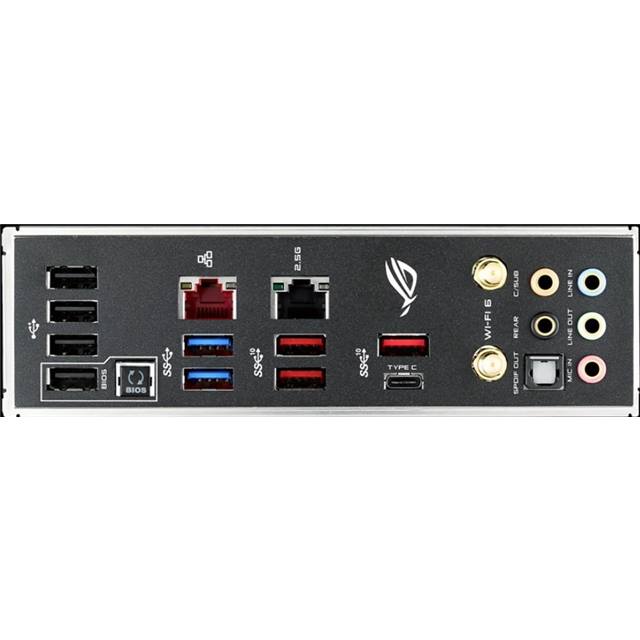

| Peripherie: | 4x USB 2.0 Typ-A, 2x USB 3.2 Typ-A (Gen 1), 3x USB 3.2 Typ-A (Gen 2), 1x USB 3.2 Typ-C (Gen 2), 5x 3.5mm Klinke |
| Audio: | 7.1 (8-Kanal) |
| Netzwerk: | 1x 100/1000 Mbps, 1x 100/1000/2500 Mbps |
| Grafik Ausgänge: | Nein |
| WLAN: | Ja |
| Bluetooth: | Ja |
Storage
| Laufwerk: | 8x SATA 6Gb/s, 2x M.2 |
| Zus. Funktionen: | Raid 0,1,5,10 |
Steckplätze
| Anzahl / Typ: | 3x PCIe 3.0 x16, 1x PCIe 3.0 x4, 1x PCIe 3.0 x1 |
